Front bumper wrap inlays on a 1992-1995 Honda Civic
Learn how to plan out bumper inlays from the bottom up before applying your main wrap piece.
This tutorial shows a copper and black 1992 to 1995 Honda Civic front bumper getting prepped for vinyl wrap. Complex aftermarket bumpers can look difficult to cover in a single piece, but breaking the surface down into multiple inlays makes the job manageable.

Planning the Inlay Order

The installer explains that the key rule for this bumper is to start from the bottom and work upward. Starting low ensures that seams overlap naturally and stay hidden from view once the main piece is applied.

The process follows these specific steps:
1. Install the bottom side pieces first.
2. Lay the lower centerpiece in the middle.
3. Focus on the fog light pockets, splitting each area into three separate pieces.
4. Complete the lip and the sections going into the center mouth opening.
5. Lay the main sheet of vinyl wrap over the entire face to finish the bumper.
Working with Vinyl Wrap

Using inlays prevents excessive film tension in deep recesses and hard corners. Aura Vinyl vinyl wrap features a cast polymer hybrid build with German-made adhesive and PET backing to keep the finish smooth across both seams and main panels.

FAQ
Why should you start bumper inlays from the bottom?
Starting from the bottom and working upward allows upper vinyl layers to overlap lower edges. This helps hide the seams from normal viewing angles.
How many inlays were used for the fog light areas?
Each fog light area was split into three separate pieces, including the bottom corner, the mouth opening, and the center lip.
How to vinyl wrap small recessed areas
Learn how to feed vinyl into recessed areas to stop bubbles and tension from lifting the film.
This installation tutorial demonstrates how to apply vinyl wrap into small recessed areas without leaving bubbles. The demonstration shows how tension affects material when wrapping body channels. The presenter first illustrates the concept using masking tape. If you bridge the material flat over a recess and try to force it down into the groove, the film resists and will not go in cleanly. Forcing material into a channel creates tension that eventually causes the film to pop back up. To achieve a clean install without tension, start by feeding the vinyl directly into the recess before working downward. Working the film into the groove first prevents tension from building along the body line, eliminating the risk of bubbling or lifting. After the vinyl is completely fed into the channel, you can choose to continue squeegeeing the area or glass the remaining film across the panel before completing your squeegee passes. This process ensures the material remains securely seated in the recess. Aura Vinyl vinyl wrap features a cast polymer hybrid film with German-made adhesive and a PET-backed finish for a smooth install.

FAQ
Why do bubbles form in small recessed wrap areas?
Bubbles form when vinyl wrap is stretched or forced into a recess rather than fed into it. Bridging the material over the groove creates tension that causes the film to pop back up later.
How do you install vinyl wrap into a body recess?
Start by feeding the vinyl directly into the recess and working your way down to eliminate tension. Once the material is fully seated in the channel, you can continue squeegeeing or glass the film flat before squeegeeing.
What type of film does Aura Vinyl use for wraps?
Aura Vinyl vinyl wrap is a cast polymer hybrid film with German-made adhesive. It features a PET backing designed to provide a smooth finish.
How to cut relief cuts in vinyl wrap
Learn how circular relief cuts stop vinyl wrap from tearing and exposing paint when stretched.
This demonstration shows how to make proper relief cuts in vinyl wrap without tearing the film.

The video compares what happens when working with straight relief cuts versus curved relief cuts. When an installer cuts vinyl in a straight line and stretches the film into place, the material can rip or expand. This tearing can expose the vehicle paint underneath. The demonstration shows the visible difference between a straight cut that tears under tension and a properly shaped cut that stays intact.

Proper Relief Cut Technique

To prevent vinyl wrap from tearing during an install, use these steps:
- Cut relief cuts in the shape of a circle or a half circle instead of a straight line.
- Apply pressure and work the film across the panel without forcing the slit to split.
- Apply heat to the cut area so the vinyl goes back to its natural shape.
Using a curved relief cut stops the cut edge from tearing further when you pull and stretch the material around body lines.

Aura Vinyl Wrap Features

Aura Vinyl wrap uses a cast polymer hybrid film with German-made adhesive and a PET backing. These features provide pliability and clean repositioning when working material around edges.

FAQ
Why do straight relief cuts tear vinyl wrap?
Cutting vinyl wrap in a straight line creates a weak point. When you stretch and work the material, it can rip or expand and expose the vehicle paint underneath.
What is the best shape for a vinyl wrap relief cut?
Relief cuts should be cut in the shape of a circle or a half circle. This circular cut stops the film from tearing when pressure is applied.
What happens when you heat a curved relief cut?
When you apply heat to a circular relief cut, the vinyl wrap returns to its natural shape without ripping further.

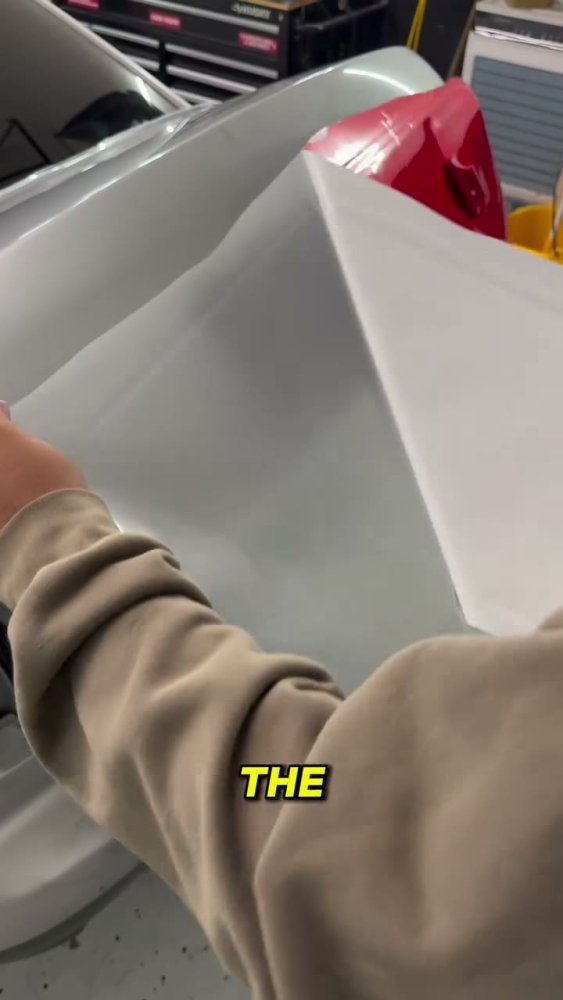

Metallic Cherry Red PPF on an Audi A4
See how to feed Hyper PPF into a trunk recess without overstretching the material.
This tutorial demonstrates Hyper Gloss Paint Metallic Cherry Red PPF with a gloss finish on an Audi A4. The video shows an installer feeding the wrap into the trunk recess without overstretching the material, illustrating why some body lines require laying film directly into recesses rather than glassing across the entire panel. To begin the installation, peel the backing paper to the center. Hold one side with your hand under zero tension, and with a gloved hand on the other side, tack the center and work outward so the film relaxes into the trunk recesses. Once the center is secured, make an angled relief cut. Next, glass out the outer piece and work out all remaining air. If any wrinkles appear during the process, simply pick up the film, apply heat, glass it out again, and work out the rest of the air. Finish by cutting the film to shape along the body line through the trunk. Hyper Gloss Paint Metallic Cherry Red PPF is a dry-install colored TPU paint protection film from the Hyper PPF line, offering an expected lifespan of 6 to 10 years with proper care. It features a PET-backed finish for reduced orange peel and a cast polymer hybrid build with German-made adhesive for easy repositioning. Drivers can also preview wrap shades on their vehicle using the free Color Explorer tool at explore.auravinyl.com.

FAQ
How do you fix wrinkles when installing PPF in a recess?
Pick the material up, apply heat, and glass it out. Then squeegee out the rest of the air to eliminate the wrinkles.
How long does Hyper PPF last?
Hyper PPF has an expected lifespan of 6 to 10 years when properly maintained. Hand wash the car at least every two weeks with vinyl-safe products and avoid drive-through car washes.

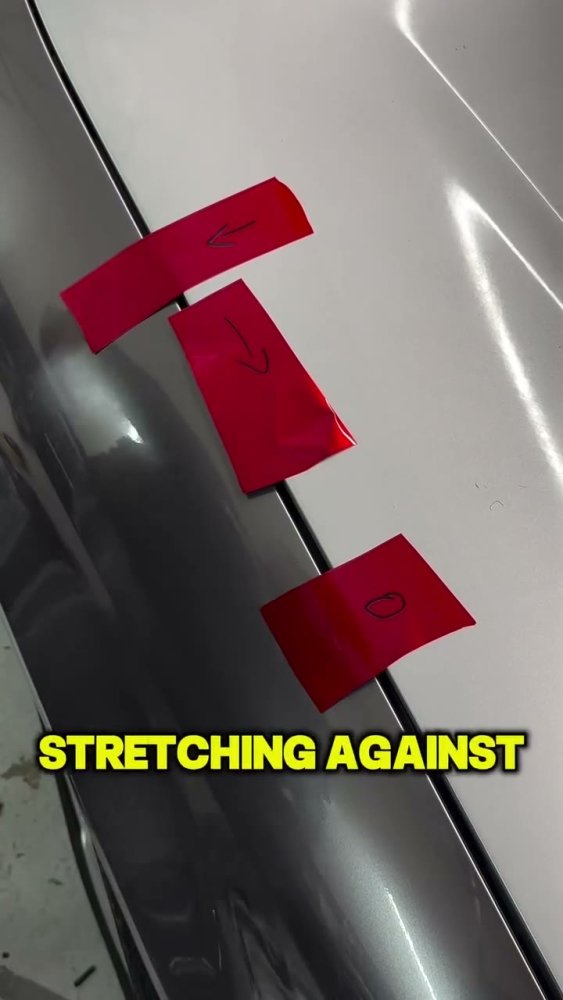

Vinyl wrap stretch with the grain vs against the grain
Watch how stretching vinyl wrap with the grain helps the film hug edges instead of pulling back.
This demonstration covers silver vinyl wrap stretching on a vehicle panel.

The video highlights the physical differences between stretching film against the grain, stretching with the grain, and applying zero stretch. Both stretch methods can look identical right after application, but the actual performance shows during the finishing stage.

Post-Heat Reaction and Edge Hold

To demonstrate the effect, heat the material and stretch it against the grain first. Next, heat a separate section and stretch it with the grain. The installer then cuts the material and applies heat to both sections.

The test shows clear differences in how the film reacts:
- Stretching against the grain causes the film to shrink back immediately under post-heat.
- Stretching with the grain allows the film to hug the edge cleanly.
- Zero stretch ensures the vinyl stays put without moving.
Working with the grain direction allows installers to stretch vinyl safely without causing edge pull or film failure.

Film Details

Aura Vinyl vinyl wrap is manufactured as a cast polymer hybrid film with German-made adhesive. This construction supports clean repositioning and dependable edge hold when installers follow proper grain direction and heating practices.

FAQ
What happens when you post-heat vinyl stretched against the grain?
Immediately after cutting and post-heating, vinyl stretched against the grain starts to shrink back.
Why should you stretch vinyl wrap with the grain?
Stretching with the grain allows the material to hug the edge cleanly after post-heating without failing.
What happens when you install vinyl with zero stretch?
When installed with zero stretch, the film stays in place and does not pull away from the surface.

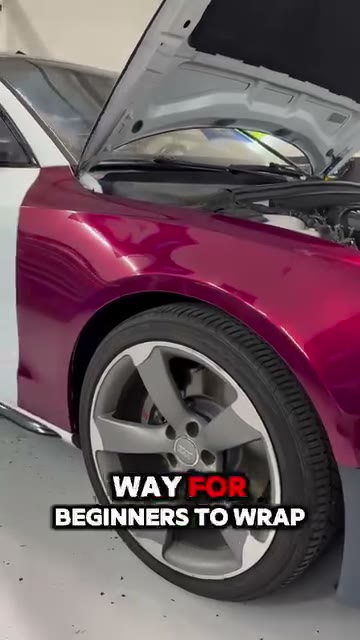

Hyper Gloss Metallic Cherry Red PPF on an Audi A5
Learn how to wrap a car fender using backing paper sectioning with Hyper Gloss Paint Metallic Cherry Red PPF.
This tutorial shows an Audi A5 front fender wrapped in Hyper Gloss Paint Metallic Cherry Red PPF with a Hyper Gloss finish. The video demonstrates an approachable installation method designed to help beginners handle fender curves by sectioning the backing paper.

Step-by-Step Fender Wrap

The installer begins by laying out the film and cutting it down to rough shape. Next, roll the backing paper on the front side toward the middle, give the film a light tack, and leave it for later. On the backside of the fender, roll the backing paper toward the bottom, lift the sheet, and cut away that portion of backing paper to split the panel into manageable sections.

Return to the front section, lift the material, and glass it out to remove tension. Repeat the glassing process on the rear section, working from the center outward. Once the center is firmly tacked down, apply heat and glass out the lower front edge of the fender, squeegeeing all trapped air out. Lift the lower backside, heat the sheet, glass it out, and push the remaining air out completely.

Edge Trimming and Tucking

Finish the edges by applying heat around the wheel well. Roll your thumb firmly over the edge, pushing as deep as possible. Lay your blade against the inside of the farthest edge to trim away excess material. For the seam that meets the door, cut on the opposite edge, apply heat, and tuck the film behind the panel.

This demonstration uses Hyper Gloss Paint Metallic Cherry Red PPF, a dry-install colored paint protection film engineered for paint defense and smooth gloss reflection.

FAQ
How do you section a fender during vinyl or PPF installation?
Roll the backing paper on the front half toward the center and lightly tack the film. Next, roll the rear backing paper toward the bottom and cut it off to divide the panel into manageable sections.
How should you trim film around the wheel well and door seams?
Heat the wheel well and roll the material over the edge with your thumb before cutting along the inside of the farthest edge. Along the door gap, cut on the opposite edge, heat the film, and tuck it behind the edge.
